PRESALE - YOUCANIC WaveScope 4C Pro — Automotive 4-Channel Diagnostic Oscilloscope (100 MHz | 1 GSa/s)

$750.00 USD $450.00 USD

Entrega estimada entre la primera_fecha_de_entrega y la última_fecha_de_entrega.

WaveScope 4C Pro is a professional 4-channel automotive oscilloscope engineered for modern vehicles. With 100 MHz bandwidth, 1 GSa/s real-time sampling, and 50 Mpts memory depth, it captures fast transients, high-resolution crank/cam correlation, injector current ramps, CAN/LIN/FlexRay frames, and charging system ripple with lab-grade accuracy. Pair it with our Android app for guided tests and mobile portability in the bay or on the road.

Why technicians choose WaveScope 4C Pro

  • 4 isolated BNC channels for multi-sensor correlation (crank, cam, primary/secondary ignition, injector, fuel pump, MAF/MAP, throttle, O2/AFR, ABS).
  • Fast acquisition: up to 1 GSa/s sampling, ≤ 3.5 ns rise time, and deep 50 Mpts capture for long recordings without decimation.
  • Automotive-ready triggers: Edge & Pulse with Automatic/Normal/Single modes for intermittent faults and glitch hunting.
  • Built-in auto measurements: frequency, period, duty cycle (positive/negative), pulse widths, rise/fall time, phase, peak-to-peak, RMS, min/max/avg, cycle RMS/mean.
  • Guided test library for Circuits, Sensors, Actuators, Ignition, Networks, and Combination tests—ideal for repeatable diagnostics and training.
  • Mobile workflow: Android application (Android 7.0+) with Type-C connectivity for ultimate portability in the field.
  • Rugged enclosure with cable support, calibration square-wave output, and compact footprint for cart or passenger seat use.

Typical Automotive Use Cases

  • Engine management: crankshaft/camshaft sync, VVT control, ignition primary/secondary, injector voltage & current ramp, coil-on-plug (COP) analysis.
  • Charging/starting: starter current, 12 V/24 V cranking voltage drop, alternator ripple, diode faults.
  • Actuators: PWM fans, EGR/Evap solenoids, electronic throttle control, fuel pump command/feedback.
  • Sensors: MAF/MAP, TPS, Hall/inductive, knock, oxygen/AFR, wheel speed/ABS, pressure and temperature transducers.
  • Networks: CAN Low/High, CAN FD, LIN, FlexRay, K-Line—frame integrity, wake-up, line bias, and noise checks.
  • Combination tests: multi-channel correlation (e.g., crank + cam + injector + ignition) to pinpoint timing or synchronization faults.

Technical Specifications

Parameter WaveScope 4C Pro
Bandwidth 100 MHz
Channels 4 (BNC)
Real-time Sampling Rate 1 GSa/s
Rise Time ≤ 3.5 ns
Memory Depth 50 Mpts
Trigger Modes Edge, Pulse
Trigger Methods Automatic, Normal, Single
Automatic Measurements Period, Frequency, Rise/Fall Time, Delay, Duty Cycle (+/-), Pulse Width (+/-), Overshoot (+/-), Phase, Peak-to-Peak, Amplitude, High/Low, Max/Min/Mean, RMS, Cycle RMS/Mean
Input Impedance 1 MΩ ±1% // 14 pF
Interface USB Type-C; DC Power
Supported Tests Charging/Starting Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, FlexRay, K-Line), Combination Tests
Battery (optional) 7.4 V, 7500 mAh Li-ion
DC Gain Accuracy ≤ 2%
Dimensions 140 × 215 × 52 mm
Weight ~640 g

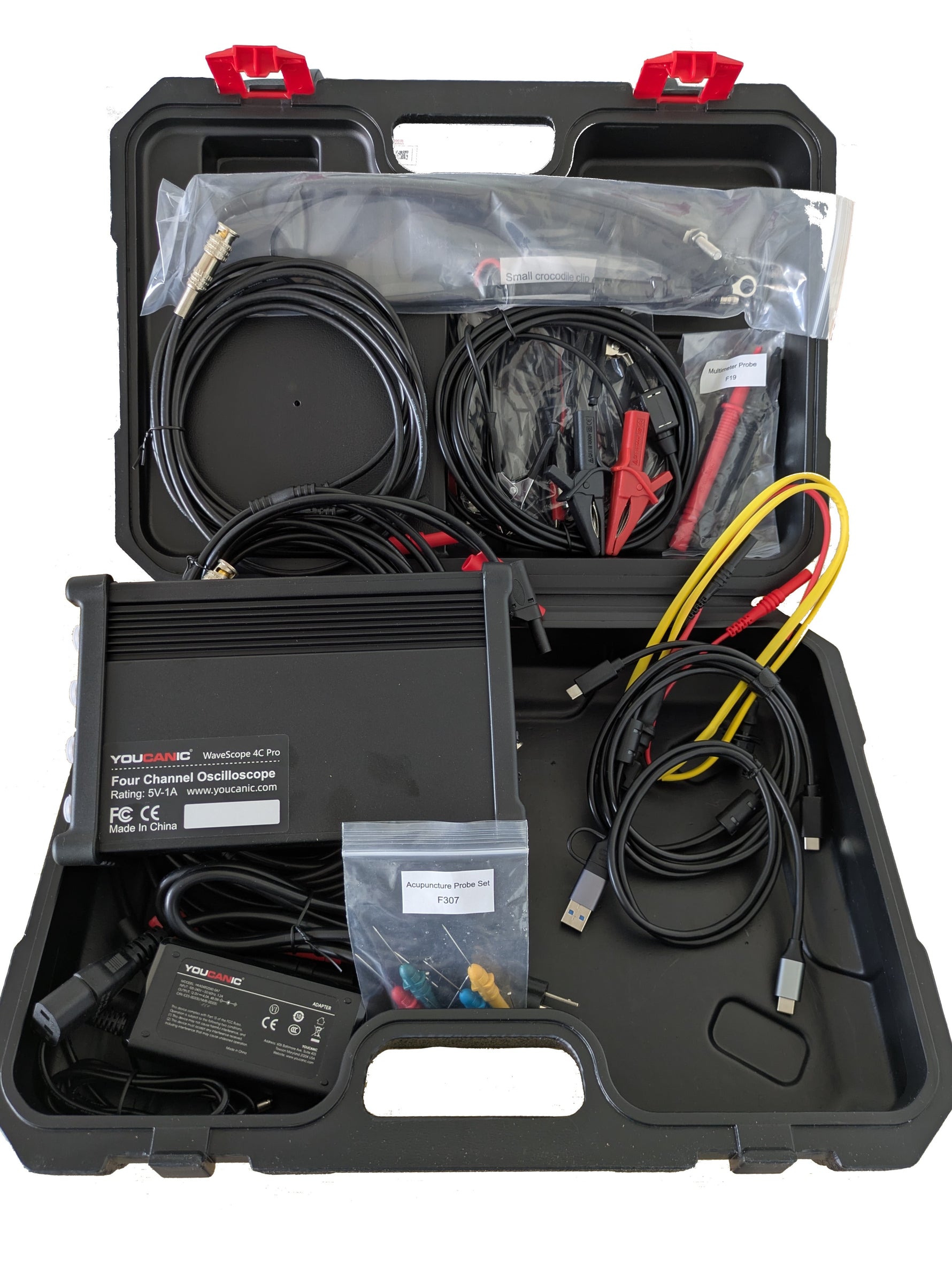

What’s in the Kit

  • Large dolphin/gator clips × 2
  • Auto high-pressure ignition probe × 1
  • Acupuncture probe set × 1
  • Multimeter probes × 2
  • Auto test cables × 4
  • Attenuator × 2
  • Break-out lead × 1
  • Dolphin/gator clip cables × 2
  • COP (coil-on-plug) extension cord × 1
  • AC to DC power supply adapter × 1
  • USB-A/C to USB-C cable × 1

Mobile App & Connectivity

Install the WaveScope Android application (Android 7.0 or later) and connect via USB Type-C. Use the built-in calibration square-wave output to compensate probes and verify channel performance before testing.

Designed for Professional Diagnostics

  • High-resolution captures with deep memory for long crank/no-start recordings without losing timing detail.
  • Noise-robust inputs with proper 1 MΩ/14 pF impedance for accurate sensor signal loading.
  • Single-shot triggering to catch one-time misfires, dropout events, network wake-ups, and injector anomalies.
  • Comprehensive guided library to standardize test hookup, scaling, and waveform interpretation.

What you can diagnose with WaveScope 4C Pro

Misfires, no-starts, cam/crank sync errors, stretched timing chains, weak coils, saturated injectors, shorted solenoids, alternator diode ripple, PWM control issues, network wiring faults (short-to-ground/short-to-VBAT), and intermittent harness/connectivity problems.

Included Calibration & Safety

  • Front-panel calibration square-wave source for probe compensation and channel verification.
  • Guided notes for safe connection using piercing probes and alligator clips.

What this scope replaces

4-channel handheld lab scope, DSO for automotive, CAN bus oscilloscope, ignition scope, injector current probe scope, engine analyzer, and network analyzer for CAN/LIN/FlexRay diagnostics.


Specifications Snapshot

Bandwidth 100 MHz | 4 Channels | 1 GSa/s | 50 Mpts | ≤ 3.5 ns rise time | Android app | Type-C |

Compare WaveScope 4C Pro with Other Automotive Oscilloscopes

Model Channels Bandwidth Sampling Rate Memory Depth Key Features Price (USD)
YOUCANIC WaveScope 4C Pro 4 100 MHz 1 GSa/s 50 Mpts Guided tests, Android app, full accessory kit $450
Micsig SATO1004 4 100 MHz 1 GSa/s ~70 Mpts Automotive presets, tablet UI, battery included $899
Micsig ATO1004 4 100 MHz 1 GSa/s Large (varies by model) Premium line, Android/tablet interface, advanced automotive functions $999+
Thinkcar 4-Ch Scope Box 4 100 MHz 1 GSa/s 50 Mpts Compact box design, integrates with scan tools $799

Pricing is approximate and based on typical retail listings as of 2025. YOUCANIC WaveScope 4C Pro provides comparable performance at nearly half the price of competing 4-channel 100 MHz automotive oscilloscopes.
