PRESALE - YOUCANIC WaveScope 4C Pro — Automotive 4-Channel Diagnostic Oscilloscope (100 MHz | 1 GSa/s)
Estimated delivery between October 16 and October 18.

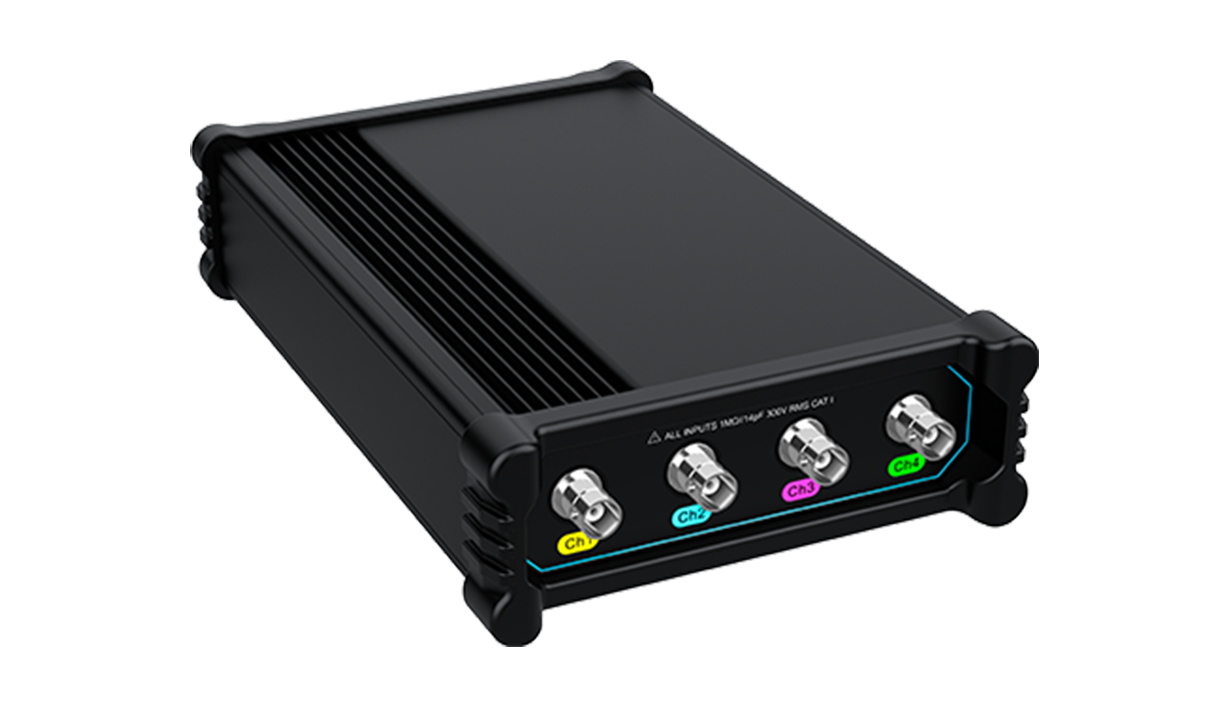

WaveScope 4C Pro is a professional 4-channel automotive oscilloscope engineered for modern vehicles. With 100 MHz bandwidth, 1 GSa/s real-time sampling, and 50 Mpts memory depth, it captures fast transients, high-resolution crank/cam correlation, injector current ramps, CAN/LIN/FlexRay frames, and charging system ripple with lab-grade accuracy. Pair it with our Android app for guided tests and mobile portability in the bay or on the road.
Why technicians choose WaveScope 4C Pro
- 4 isolated BNC channels for multi-sensor correlation (crank, cam, primary/secondary ignition, injector, fuel pump, MAF/MAP, throttle, O2/AFR, ABS).
- Fast acquisition: up to 1 GSa/s sampling, ≤ 3.5 ns rise time, and deep 50 Mpts capture for long recordings without decimation.
- Automotive-ready triggers: Edge & Pulse with Automatic/Normal/Single modes for intermittent faults and glitch hunting.
- Built-in auto measurements: frequency, period, duty cycle (positive/negative), pulse widths, rise/fall time, phase, peak-to-peak, RMS, min/max/avg, cycle RMS/mean.
- Guided test library for Circuits, Sensors, Actuators, Ignition, Networks, and Combination tests—ideal for repeatable diagnostics and training.
- Mobile workflow: Android application (Android 7.0+) with Type-C connectivity for ultimate portability in the field.
- Rugged enclosure with cable support, calibration square-wave output, and compact footprint for cart or passenger seat use.
Typical Automotive Use Cases
- Engine management: crankshaft/camshaft sync, VVT control, ignition primary/secondary, injector voltage & current ramp, coil-on-plug (COP) analysis.
- Charging/starting: starter current, 12 V/24 V cranking voltage drop, alternator ripple, diode faults.
- Actuators: PWM fans, EGR/Evap solenoids, electronic throttle control, fuel pump command/feedback.
- Sensors: MAF/MAP, TPS, Hall/inductive, knock, oxygen/AFR, wheel speed/ABS, pressure and temperature transducers.
- Networks: CAN Low/High, CAN FD, LIN, FlexRay, K-Line—frame integrity, wake-up, line bias, and noise checks.
- Combination tests: multi-channel correlation (e.g., crank + cam + injector + ignition) to pinpoint timing or synchronization faults.
Technical Specifications
Parameter | WaveScope 4C Pro |
---|---|
Bandwidth | 100 MHz |
Channels | 4 (BNC) |
Real-time Sampling Rate | 1 GSa/s |
Rise Time | ≤ 3.5 ns |
Memory Depth | 50 Mpts |
Trigger Modes | Edge, Pulse |
Trigger Methods | Automatic, Normal, Single |
Automatic Measurements | Period, Frequency, Rise/Fall Time, Delay, Duty Cycle (+/-), Pulse Width (+/-), Overshoot (+/-), Phase, Peak-to-Peak, Amplitude, High/Low, Max/Min/Mean, RMS, Cycle RMS/Mean |
Input Impedance | 1 MΩ ±1% // 14 pF |
Interface | USB Type-C; DC Power |
Supported Tests | Charging/Starting Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, FlexRay, K-Line), Combination Tests |
Battery (optional) | 7.4 V, 7500 mAh Li-ion |
DC Gain Accuracy | ≤ 2% |
Dimensions | 140 × 215 × 52 mm |
Weight | ~640 g |
What’s in the Kit
- Large dolphin/gator clips × 2
- Auto high-pressure ignition probe × 1
- Acupuncture probe set × 1
- Multimeter probes × 2
- Auto test cables × 4
- Attenuator × 2
- Break-out lead × 1
- Dolphin/gator clip cables × 2
- COP (coil-on-plug) extension cord × 1
- AC to DC power supply adapter × 1
- USB-A/C to USB-C cable × 1
Mobile App & Connectivity

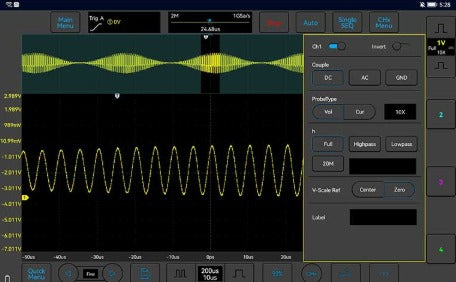

Install the WaveScope Android application (Android 7.0 or later) and connect via USB Type-C. Use the built-in calibration square-wave output to compensate probes and verify channel performance before testing.
Designed for Professional Diagnostics
- High-resolution captures with deep memory for long crank/no-start recordings without losing timing detail.
- Noise-robust inputs with proper 1 MΩ/14 pF impedance for accurate sensor signal loading.
- Single-shot triggering to catch one-time misfires, dropout events, network wake-ups, and injector anomalies.
- Comprehensive guided library to standardize test hookup, scaling, and waveform interpretation.
What you can diagnose with WaveScope 4C Pro
Misfires, no-starts, cam/crank sync errors, stretched timing chains, weak coils, saturated injectors, shorted solenoids, alternator diode ripple, PWM control issues, network wiring faults (short-to-ground/short-to-VBAT), and intermittent harness/connectivity problems.
Included Calibration & Safety
- Front-panel calibration square-wave source for probe compensation and channel verification.
- Guided notes for safe connection using piercing probes and alligator clips.
What this scope replaces
4-channel handheld lab scope, DSO for automotive, CAN bus oscilloscope, ignition scope, injector current probe scope, engine analyzer, and network analyzer for CAN/LIN/FlexRay diagnostics.
Specifications Snapshot
Bandwidth 100 MHz | 4 Channels | 1 GSa/s | 50 Mpts | ≤ 3.5 ns rise time | Android app | Type-C |
Compare WaveScope 4C Pro with Other Automotive Oscilloscopes
Model | Channels | Bandwidth | Sampling Rate | Memory Depth | Key Features | Price (USD) |
---|---|---|---|---|---|---|
YOUCANIC WaveScope 4C Pro | 4 | 100 MHz | 1 GSa/s | 50 Mpts | Guided tests, Android app, full accessory kit | $450 |
Micsig SATO1004 | 4 | 100 MHz | 1 GSa/s | ~70 Mpts | Automotive presets, tablet UI, battery included | $899 |
Micsig ATO1004 | 4 | 100 MHz | 1 GSa/s | Large (varies by model) | Premium line, Android/tablet interface, advanced automotive functions | $999+ |
Thinkcar 4-Ch Scope Box | 4 | 100 MHz | 1 GSa/s | 50 Mpts | Compact box design, integrates with scan tools | $799 |
Pricing is approximate and based on typical retail listings as of 2025. YOUCANIC WaveScope 4C Pro provides comparable performance at nearly half the price of competing 4-channel 100 MHz automotive oscilloscopes.
