YOUCANIC U360 2-in-1 Universal Programmable TPMS Sensor – 315 MHz & 433 MHz

$18.50 USD

type

Estimated delivery between August 03 and August 05.

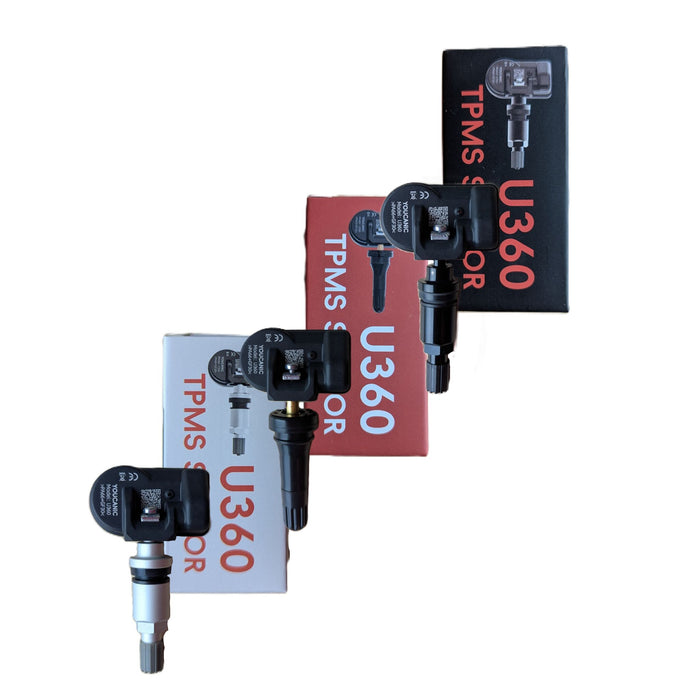

YOUCANIC U360 2-in-1 Universal Programmable TPMS Sensor

Replace failed or damaged tire pressure sensors without stocking dozens of vehicle-specific part numbers. The YOUCANIC U360 2-in-1 Universal Programmable TPMS Sensor combines 315 MHz and 433 MHz frequencies in one versatile replacement sensor for broad vehicle coverage.

Each U360 is supplied as a blank TPMS sensor and must be programmed for the specific vehicle before installation. The U360 can be programmed using the YOUCANIC UCAN-II-D diagnostic scanner.

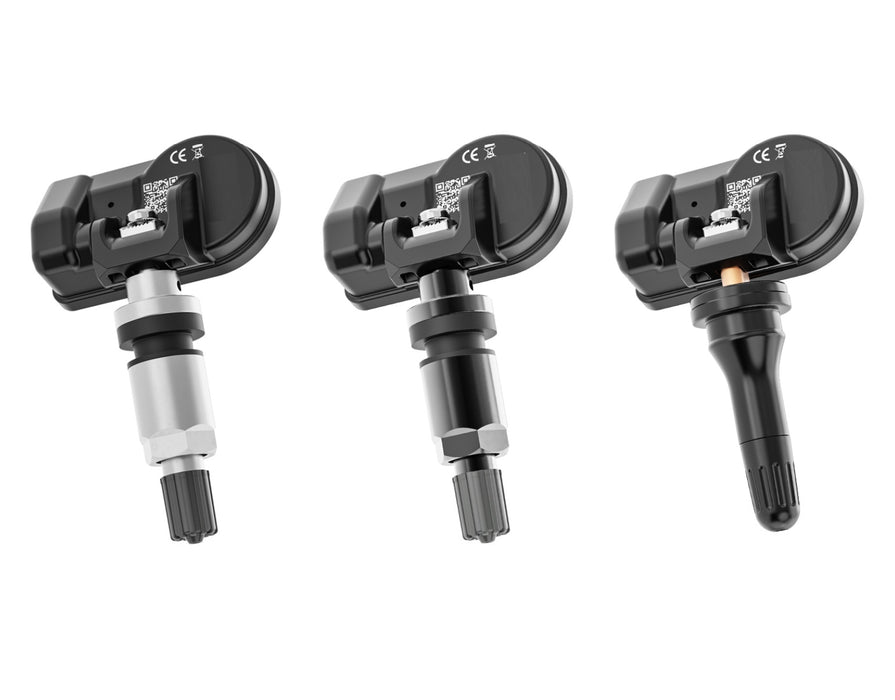

Choose from three valve options:

  • Black rubber snap-in valve
  • Black metal clamp-in valve
  • Silver metal clamp-in valve

Important Programming Compatibility Notice

This is a blank TPMS sensor. It will not function until it has been programmed for a compatible vehicle.

The YOUCANIC U360 can be programmed with the YOUCANIC UCAN-II-D scanner only. It cannot be programmed using the YOUCANIC UCAN-II-(A), UCAN-II-B, or UCAN-II-C scanners.

Compatibility with third-party TPMS programming tools is not guaranteed. Do not purchase this sensor with the expectation that another brand of TPMS tool will be able to program it.

One Sensor for 315 MHz and 433 MHz TPMS Systems

The U360’s dual-frequency design supports the two primary frequencies used by direct tire pressure monitoring systems:

  • 315 MHz TPMS applications
  • 433 MHz TPMS applications

Instead of keeping separate 315 MHz and 433 MHz sensors in inventory, tire shops, automotive repair facilities, mobile mechanics, and experienced DIY technicians can use one programmable TPMS sensor for a wide range of compatible vehicles.

Designed for Reliable Tire-Pressure Monitoring

Once correctly programmed and installed, the YOUCANIC U360 transmits tire-pressure and temperature information to the vehicle’s tire pressure monitoring system. It is engineered for accurate readings, dependable wireless signal transmission, and long-term operation inside the wheel.

The adjustable sensor angle helps technicians position the sensor correctly on a variety of wheel designs. High-precision valve components help maintain an airtight seal and reduce the possibility of air leakage.

Key Features

  • Universal programmable replacement TPMS sensor
  • U360 2-in-1 dual-frequency design
  • Supports both 315 MHz and 433 MHz applications
  • Supplied blank for vehicle-specific programming
  • Programmable with the YOUCANIC UCAN-II-D scanner
  • Broad coverage for vehicles equipped with direct TPMS
  • Accurate tire-pressure and temperature monitoring
  • Strong wireless signal transmission
  • Unique sensor identification number
  • Adjustable installation angle from 0° to 30°
  • Replaceable and interchangeable valve design
  • Available with rubber or metal valve stems
  • Built-in 3-volt battery
  • Expected battery service life of more than five years
  • Suitable for tire shops, repair centers, mobile technicians, and DIY automotive service

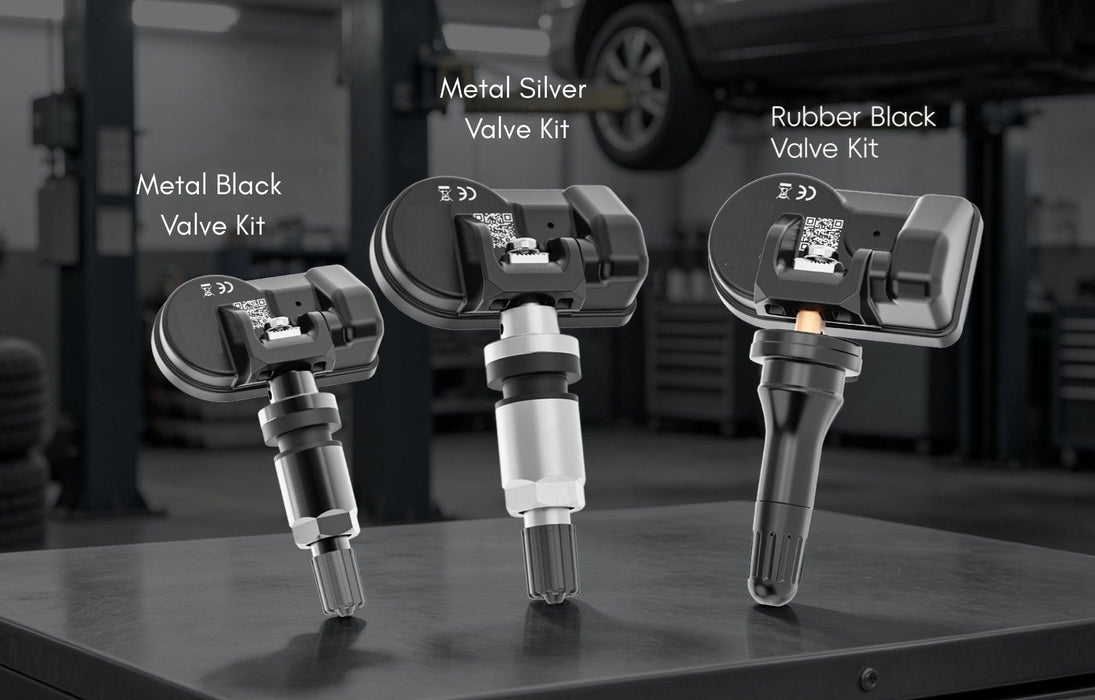

Choose Your Valve Style

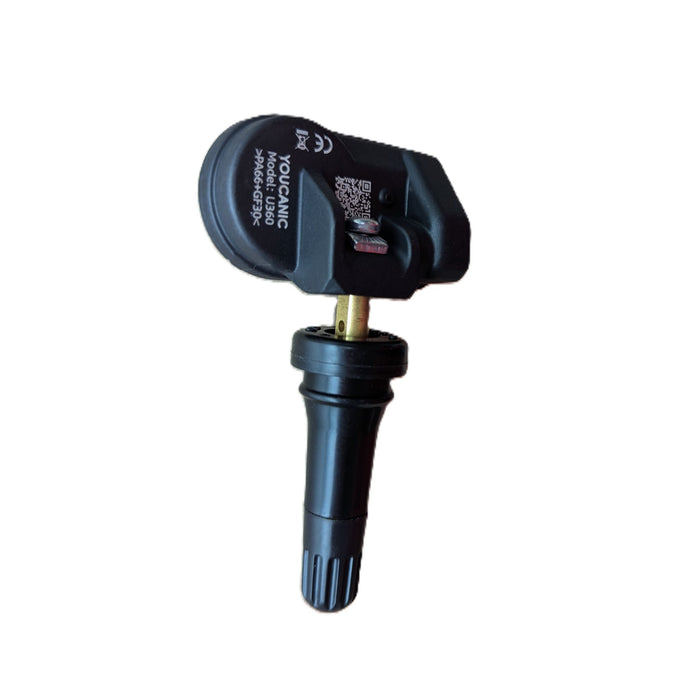

Black Rubber Valve

The black rubber snap-in valve provides an OEM-style appearance and is a practical choice for many standard passenger-vehicle wheels.

Black Metal Valve

The black metal clamp-in valve provides a clean, low-profile appearance that pairs well with black, graphite, and dark-colored wheels.

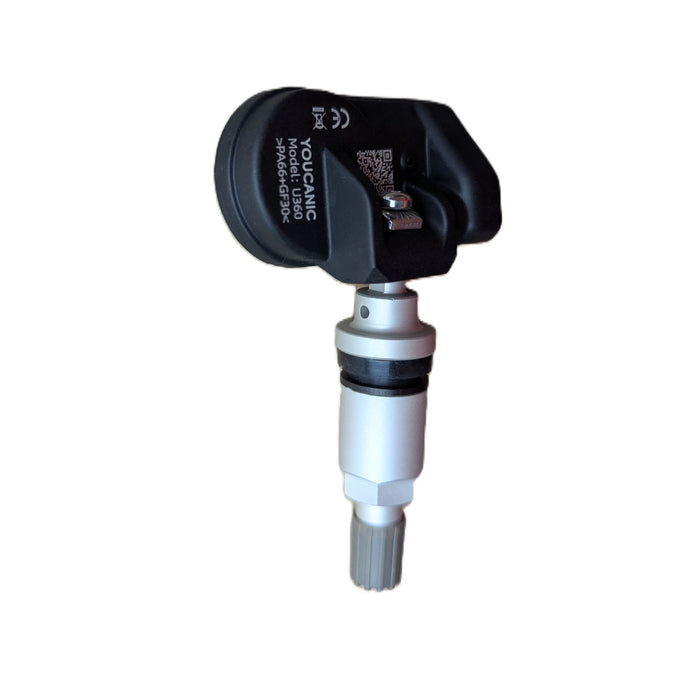

Silver Metal Valve

The silver metal clamp-in valve offers a traditional metallic finish suitable for silver, polished, and many factory alloy wheels.

Select your preferred valve style before adding the sensor to your cart.

Technical Specifications

Specification U360 Sensor
Sensor type Blank universal programmable TPMS sensor
Operating frequencies 315 MHz / 433 MHz
Low-frequency activation 125 kHz
Pressure-monitoring range 0–900 kPa
Pressure-reading accuracy ±1 kPa
Temperature-reading range -40°C to +125°C
Temperature-reading accuracy ±1°C
G-sensor accuracy ±1 g
Transmission power 5–8 dBm
Operating temperature -40°C to +125°C
Storage temperature -40°C to +35°C
Operating humidity Up to 90%
Battery Built-in 3.0 V battery
Estimated battery life More than 5 years
Sensor dimensions 46.2 × 27.8 × 17.7 mm
Weight without valve 12 g
Adjustable angle 0°–30°

Before Ordering

  1. Confirm that your vehicle uses a direct TPMS system with sensors installed inside the wheels.
  2. Confirm that your vehicle application is supported by the U360 programming database.
  3. Make sure you have access to a YOUCANIC UCAN-II-D scanner.
  4. Select the appropriate rubber or metal valve for your wheels.
  5. Remember that the sensor arrives blank and must be programmed before installation.

The YOUCANIC UCAN-II-A, UCAN-II-B, and UCAN-II-C scanners cannot program this sensor.

Programming, Installation and TPMS Relearn

Professional installation is recommended because the tire normally must be removed from the wheel to install an internal TPMS sensor. The U360 must be programmed before installation. After installation, the vehicle may also require a TPMS relearn or sensor registration procedure.

Sensor programming and vehicle relearning are separate procedures. The exact relearn method depends on the vehicle’s year, make, and model.

  1. Program the blank U360 for the correct vehicle using the UCAN-II-D.
  2. Remove the tire from the wheel.
  3. Install the sensor and selected valve assembly.
  4. Inflate the tire to the manufacturer’s recommended pressure.
  5. Complete the vehicle-specific TPMS relearn procedure.
  6. Confirm that the vehicle recognizes the sensor and displays the correct tire pressure.

Always follow the correct installation procedure and tightening specifications for the selected valve assembly.

What Is Included?

  • One YOUCANIC U360 2-in-1 programmable TPMS sensor
  • One selected valve assembly:
    • Black rubber valve, or
    • Black metal valve, or
    • Silver metal valve

The YOUCANIC UCAN-II-D scanner is sold separately unless specifically included in a product bundle.

A Smarter TPMS Replacement Solution

Whether you operate a tire shop, maintain a mixed fleet, repair vehicles professionally, or service your own cars, the YOUCANIC U360 helps simplify TPMS sensor replacement. Its 315 MHz and 433 MHz dual-frequency capability reduces the need to purchase and store multiple sensor types, while three available valve options provide the right appearance for a wide range of wheels.

Order the YOUCANIC U360 Universal Programmable TPMS Sensor and choose your preferred black rubber, black metal, or silver metal valve.
